Home > Stud Bolts > Titanium Stud Bolts
Request For Our Latest Prices on Titanium Stud Bolts in Mumbai, India!

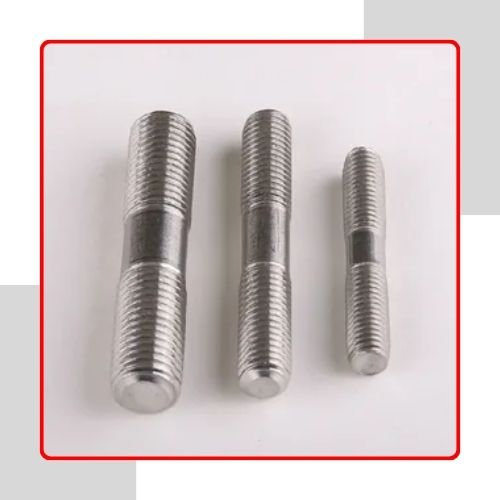

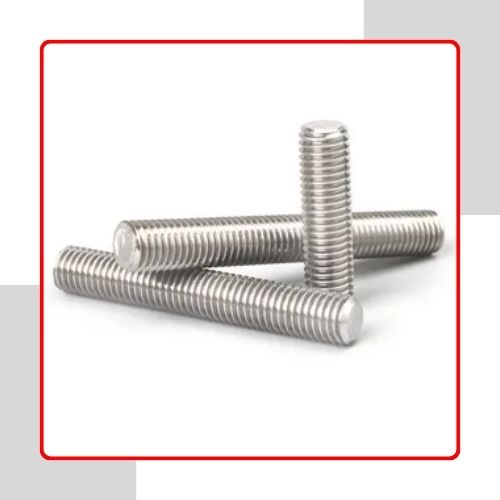

The Fasteners Mart in Mumbai, India, is a company with a respected name among fastener manufacturers, providing high-quality fastening solutions customized to industry and engineering requirements. One of its extensive product lines includes Titanium Stud Bolts in Grade 2 (commercially pure titanium) and Grade 5 (Ti-6Al-4V). Stud bolts are double-ended threaded rods usually utilized with nuts on both ends for tight clamping in high-performance applications. Made from corrosion-resistant titanium alloy, they possess high strength-to-weight ratio, which makes them suitable for employment in aerospace, marine, chemical, and high-temperature applications.
Titanium Stud Bolts consist of high-grade titanium alloys such as Grade 5, made up of 90% titanium, 6% aluminum, and 4% vanadium. The bolts have high tensile strength (up to 950 MPa) and yield strength (~880 MPa) and high ductility and resistance to fatigue. Grade 2 provides excellent corrosion resistance with marginally reduced strength. Titanium physically has a density of 4.43 g/cm³ and a melting point of approximately 1660°C. Lightweight, non-magnetic, and biocompatible, titanium stud bolts are ideal for demanding load-bearing applications in tough environments.
| Specifications | ASTM B348 / ASME SB348 |
| Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
| Size | M3 – M100 | 3/6″ – 4″ | Custom Sizes |
| Length | 3 mm – 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
| Surface Treatment | Passivation /plain |
| Others Factor | OEM, ODM, ±0.03MM tolerance |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
| Packing | IN BULK: carton, pallet, Small Boxes or customer request |
| Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Delivery time | Regular product : 7-15 days, Custom product : 2-4 weeks |
| Place of Origin | India |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Titanium Stud Bolts find widespread applications in industries requiring strength, corrosion resistance, and light weight. In aerospace, they’re used to fasten turbine assemblies and structural elements. In the marine industry, they’re best suited for offshore platforms and ship construction due to their corrosion resistance against saltwater. The chemical and petrochemical industries apply them in pressure vessels and reactors handling aggressive chemicals. Their biocompatibility also makes them ideal for medical implants and devices. Furthermore, they find applications in automobile, power stations, and water desalination plants, with long-term resistance and high performance under harsh conditions.
The Fasteners Mart provides safe and timely delivery of Titanium Stud Bolts to domestic and international locations. We ensure secure, export-grade packaging through bubble wrap, moisture-resistant packing materials, and strong wooden crates or cartons to avoid transit damage. We offer customized labeling and packaging services according to client and project requirements.
The Fasteners Mart is a leading manufacturer and supplier of high-quality fasteners in Mumbai, India, with over 8 years of experience serving global industries.
