Request For Our Latest Prices On Hastelloy Bolts in Mumbai, India!

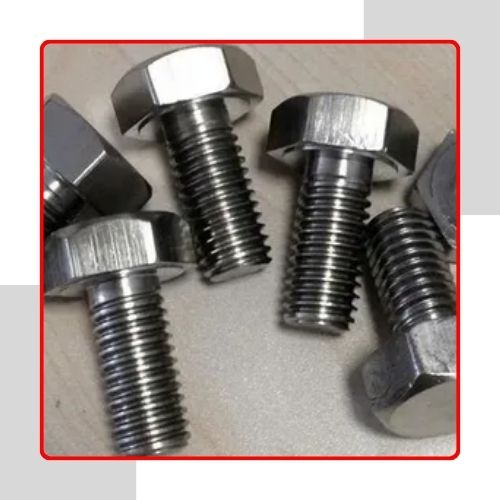

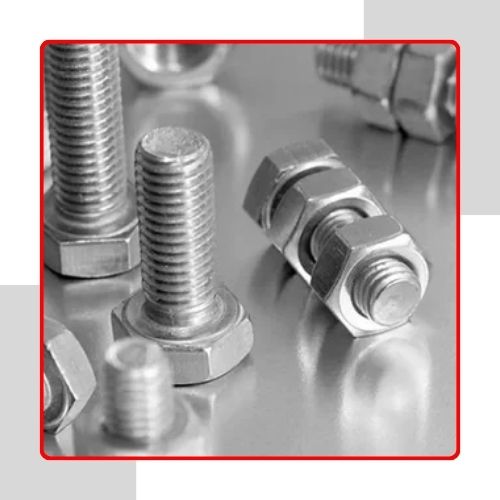

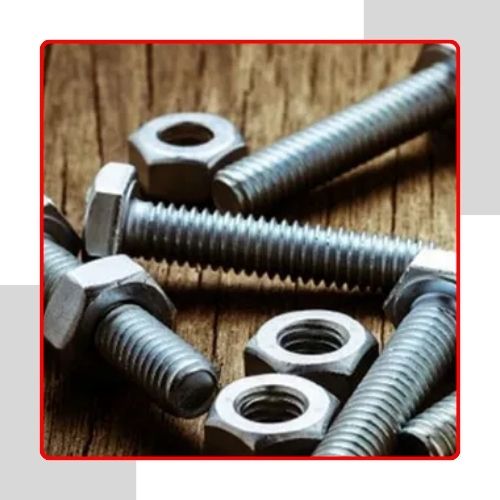

The Mumbai, India-based Fasteners Mart is a well-known producer and supplier of high-quality industrial fasteners, famous for precision engineering and longevity. Hastelloy Bolts are one of their most important products, intended for corrosive and high-temperature conditions. The bolts come in different shapes like hex bolts, stud bolts, and socket head bolts. Made from Hastelloy grades such as C22, C276, and B2, these fasteners consist of a strong nickel-molybdenum or nickel-chromium alloy that provides enhanced resistance to chemical attacks and best suited for applications of critical industrial use.
Hastelloy Bolts consist mainly of nickel (max. 60%), molybdenum (13–17%), iron, chromium, and traces of cobalt, tungsten, and carbon. The composition of these bolts exhibits outstanding resistance against oxidizing as well as reducing agents. In terms of mechanical properties, they possess tensile strength of about 690–760 MPa and yield strength of about 283 MPa. They also exhibit high ductility and resistance to stress-corrosion cracking. Physically, Hastelloy is structurally stable at temperatures of up to 1040°C and provides excellent corrosion resistance in both acidic and oxidizing media, with a long service life under harsh conditions.
| Specifications | ASTM B574 / ASME SB574 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of High Nickel Alloy Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated High Nickel Alloy Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | High Nickel Alloy : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), High Nickel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
| Grade | C | Mn | Si | Co | S | Ni | Cr | Fe | Mo | W | V | P |
| Hastelloy Fasteners | 0.010 max | 1.0 max | 0.08 max | 2.5 max | 0.03 max | Bal | 14.5 – 16.5 | 4 – 7 | 15 – 17 | 3 – 4.5 | 0.35 max | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy Fasteners | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Hastelloy Bolts are commonly applied in chemical processing, marine, power generation, and waste treatment industries. They are the best choice for heat exchangers, reactors, distillation columns, and pressure vessels. Other uses include flue gas scrubbers, pulp and paper manufacturing, and pharmaceutical process equipment. Because of their exceptional resistance against chlorides, strong acids, and severe oxidizers, Hastelloy Bolts are selected for applications in which durability, safety, and long-term efficiency are paramount, particularly in corrosive and stressful operating environments.
The Fasteners Mart provides timely and safe delivery of Hastelloy Bolts in India and all over the world. Every product is sealed in export-quality wooden boxes, HDPE bags, or cartons, which are anti-corrosion coated or moisture-wrapped. Clear labeling is made for easy traceability, easy identification, and convenient inventory management during transportation and storage.
